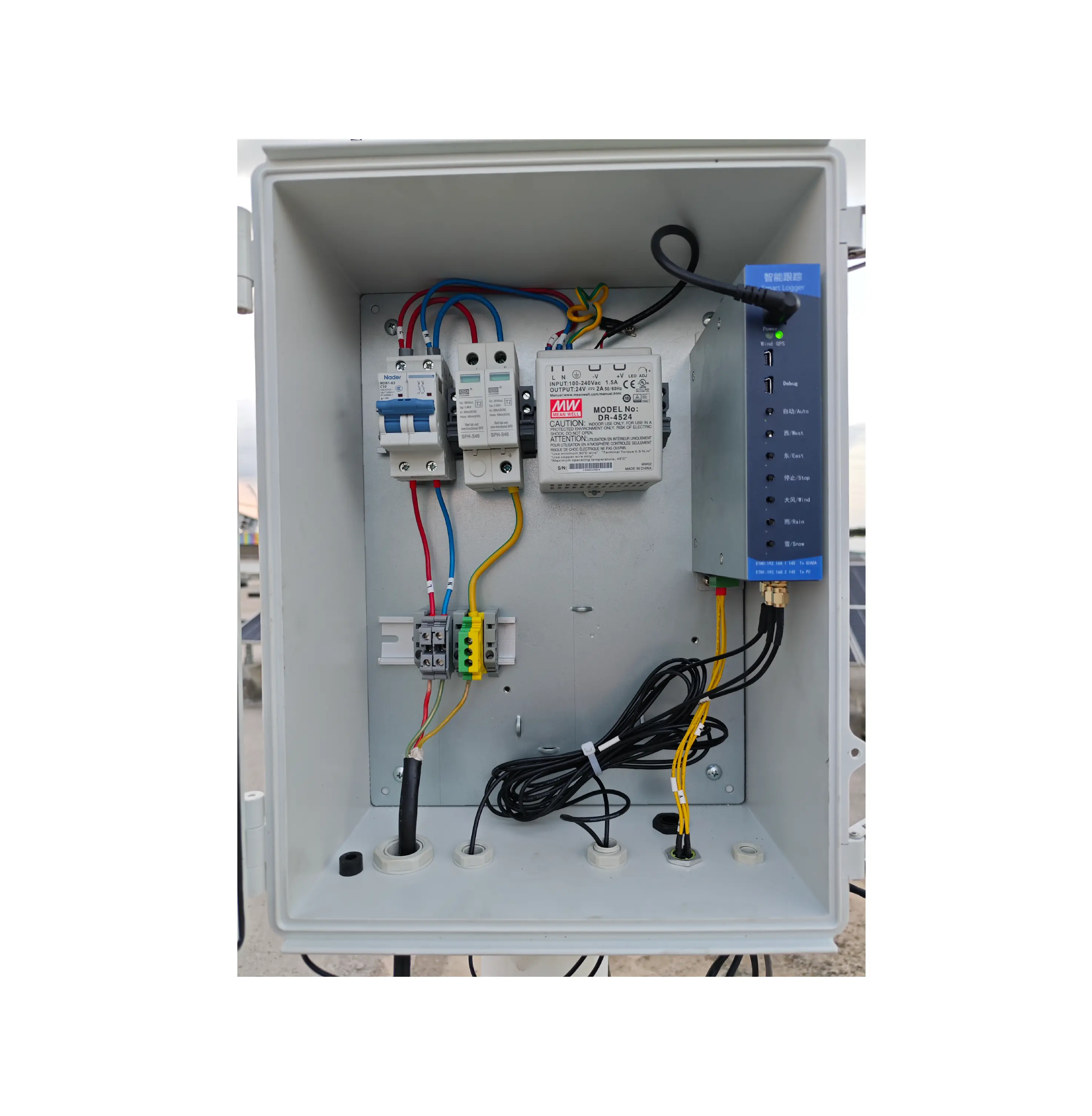

Network Control Unit NCU is the core equipment of the solar tracking control systems. It embodies the tracking controller TCU and SCADA software in terms of communication. It is also an important guarantee for the safe, reliable and accurate operation of the solar tracking control systems.
The NCU communicates with the TCU wirelessly to obtain the real-time operating parameters of all TCUs. The TCU can be controlled individually or in groups, and the acquired weather sensor data can be sent to each TCU. At the same time, the NCU can upload TCU operating data, meteorological parameters and other data to the back-end SCADA system through fixed or wireless methods, and accept control instructions from the back-end SCADA system.
| Basic Parameters | |
| Models | NCU |
| Power Supply | 220VAC / 24VDC |
| Way of Communication | Sub-1GHz / RS485 / Bluetooth |
| Letter of Agreement | Modbus RTU |
| Protection Level | IP65 |
| Ambient Temperature | -30-60℃ |
| Altitude | ＜ 4000m |
| Tracking Parameters | |
| Tracking Accuracy | ＜ ±1° |
| Control Method | Astronomical Algorithm + Position Sensor |
| Networking Method | Self-organizing network |
| Meteorological Type | Wind Speed, wind direction, rainfall, snow thickness, temperature, humidity, irradiation, etc |
| Operating Mode | Automatic, Fault, Night, Fixed Angle, Heavy Rain, Strong Wind, Heavy Snow, Maintenance, Stop |
| Reverse Tracking | Support |
| Cloudy Mode | Support |
Wind Speed and Direction Protection Logic | Optional |
| Broadcast Control | Support |
| Other Parameters | ||
| NCU Upgrade | Support | Direct Connection to PC |
| TCU Upgrade | Support | Support Wireless Upgrade |
| MQTT | Support | |
| Historical Data Query | Support | |
The NCU communicates with the TCU wirelessly to obtain the real-time operating parameters of all TCUs. The TCU can be controlled individually or in groups, and the acquired weather sensor data can be sent to each TCU. At the same time, the NCU can upload TCU operating data, meteorological parameters and other data to the back-end SCADA system through fixed or wireless methods, and accept control instructions from the back-end SCADA system.
1) Support Sub-1GHz/4G/RS485/Ethernet and other communication letter mode. System operation is stable and reliable.
2) Support batch modification of parameters. And it is simple control and easy debugging.
3) Support smart weather stations to improve power generation efficiency and safety.
4) The background configuration is simple. The intelligent operation and aintenance of the power station can be easily realized.
