Solar Tracking Control System, Solar Tracker Components/Parts

Solar Tracker Control System

Solarsurges has developed its own photovoltaic solar tracking control system, including the integration of "AI + solar tracking" technology applications, providing customers with "hardware + software + data + service" multi-functional solutions. The control system for solar tracking automatically calculates the trajectory of the sun, azimuth, and altitude of the location at any moment according to the local longitude, latitude, time, and program. Furthermore, it automatically issues tracking commands according to the current position of the sun and controls the operation of the motor actuator to achieve real-time tracking of the sun by PV modules and thus increase the power generation. Meanwhile, the supporting solar tracker software system enables the owner and operator of the tracking PV plant to fully control the real-time operation of the plant, so as to complete the operation and maintenance of the plant in an efficient and safe condition.

Types of Solar Tracking Control System

TCU Self Powered

TCU AC Powered

TCU DC Powered

TCU

TCU can control the solar tracking support motor according to the current position of the sun to realize the photovoltaic panels are always perpendicular to the angle of the sun, thus enhancing the power generation.

Network Control Unit (NCU)

NCU

The tracking bracket is generally lined up north-south and tracked in an east-west direction. The intelligent industrial control machine equipped with NCU communicates the tracking angle through 485 w...

Cloud SurgeTrack SCADA

Local SurgeTrack SCADA

SolarTracker SCADA APP

SurgeTrack SCADA

Real-time collecting, monitoring, analyzing, and tracking of the operation status of the PV power plant system. It also boasts various functions such as fault alarm, data analysis, worksheet system, report generation, and other functions, thereby improving the efficiency of PV power plant operation and maintenance and ensuring stable operation of the power plant.

TCU

NCU

SurgeTrack SCADA

Advantages of Solar Tracker System

Innovation Oriented

We insist on independent research and development and focus on technological innovation of solar tracker components/parts and solar tracker system project over the years. The core team dedicate to paying attention to the real needs of users and solar tracker efficiency improvement, improving product quality and enhancing control accuracy.

PV Tracking Algorithm

The intelligent tracking controller enables photovoltaic modules to track the sun in real time, thereby increasing power generation. Through precise analysis and prediction by intelligent algorithms, the optimal operating angle of each array is calculated to achieve global optimal tracking and improve the power generation efficiency of photovoltaic power stations by 1~6%.

High Quality Guarantee

The control system for solar tracking contains multiple functions to enhance the stability of the system, including snow protection, clean mode, wind protection, stable wireless communication, etc. Each solar tracker software has gone through layers of testing and certification, such as vibration tests, dust tests, EMC testing, low-pressure test, waterproof test, and other certification tests with international standards. Solarsurges believes that superior product performance is the basis of cooperation, sincere service attitude being the essence of cooperation.

Solar Tracker Components

- 01-

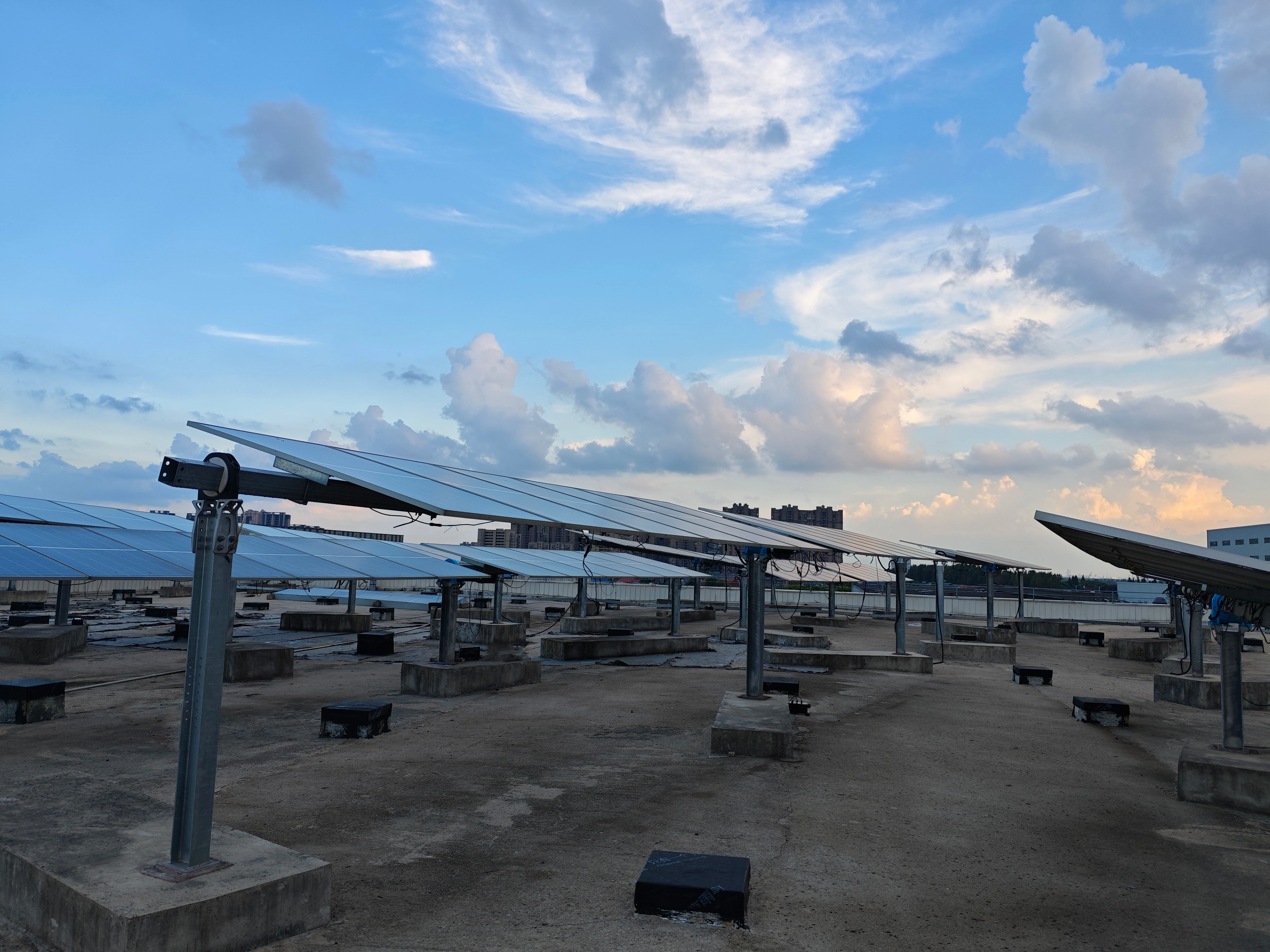

Solar Tracking System in Suzhou

- 02-

Solar Tracking System in A Photovoltaic Power Station Project in Ningxia

- 03-

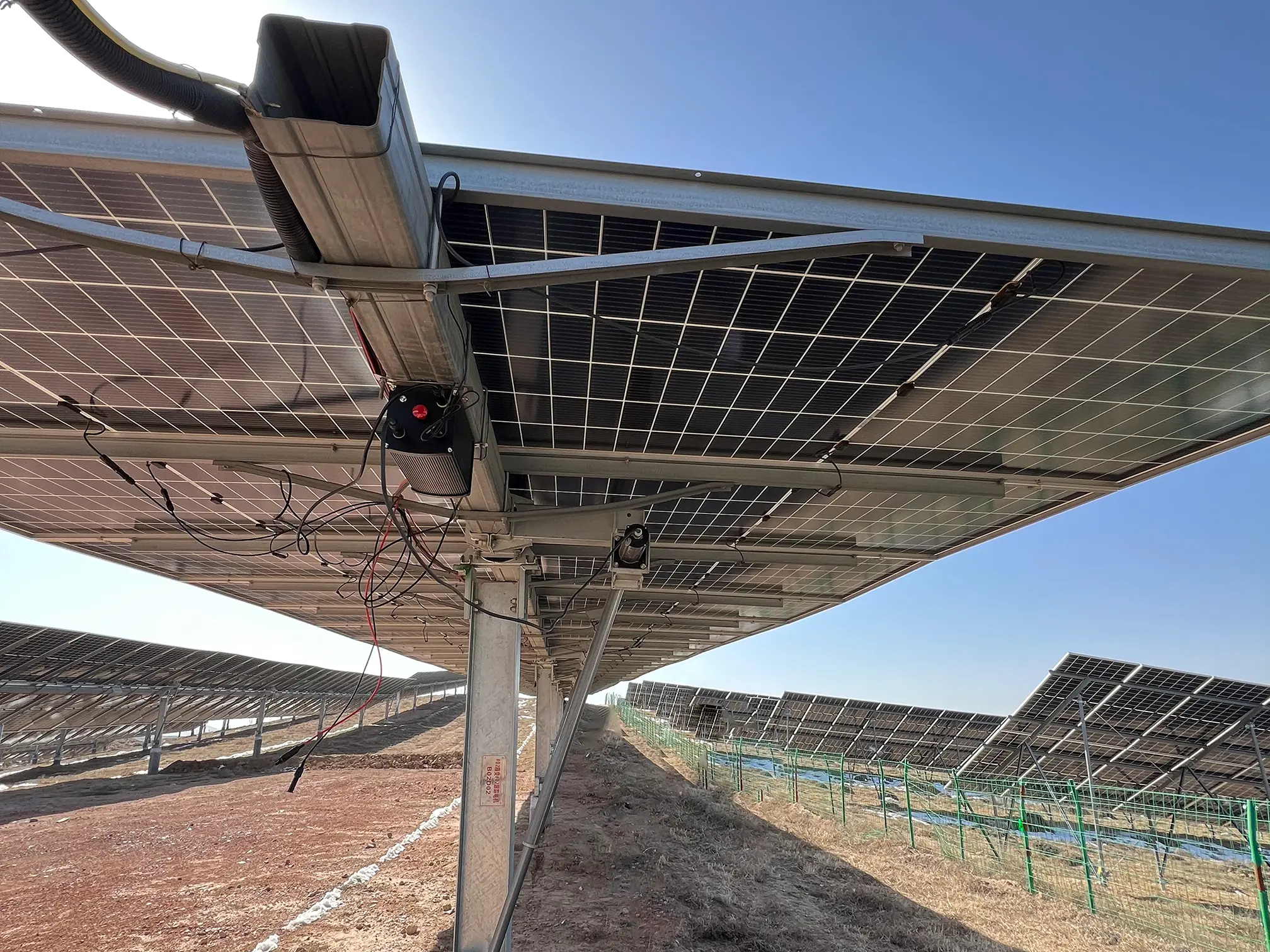

Solar Tracking System in Bayannur Project in Inner Mongolia Photovoltaic Power Plant Project

- 04-

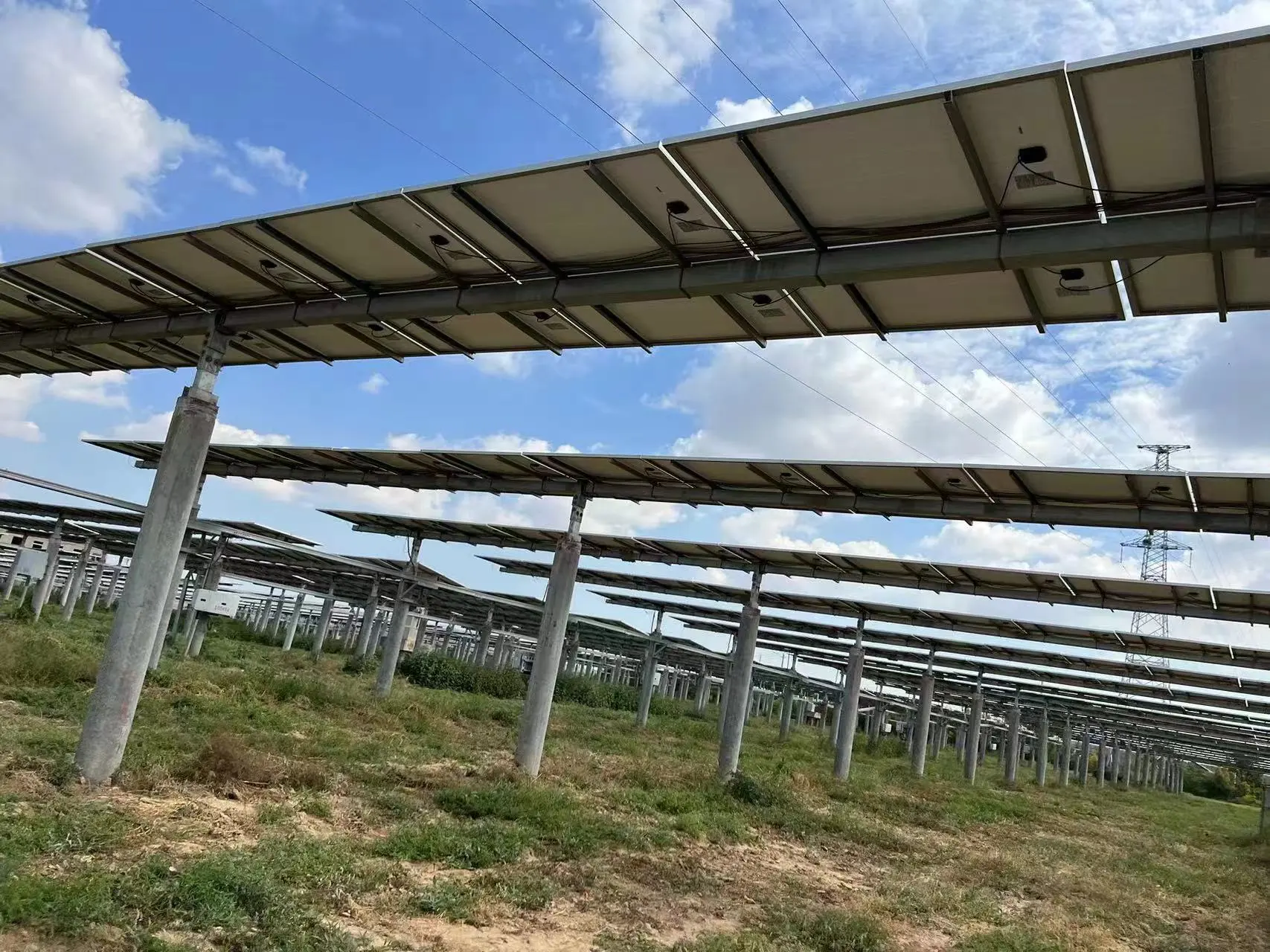

Solar Tracking System in Weinan Project in Shanxi

- 05-

Solar Tracking System Yuncheng Project in Shanxi China

Solar Tracking System in A Photovoltaic Power Station Project in Ningxia

Solar Tracking System in Bayannur Project in Inner Mongolia Photovoltaic Power Plant Project

Solar Tracking System in Weinan Project in Shanxi

Solar Tracking System Yuncheng Project in Shanxi China

Solar Tracking System Turnkey Solutions

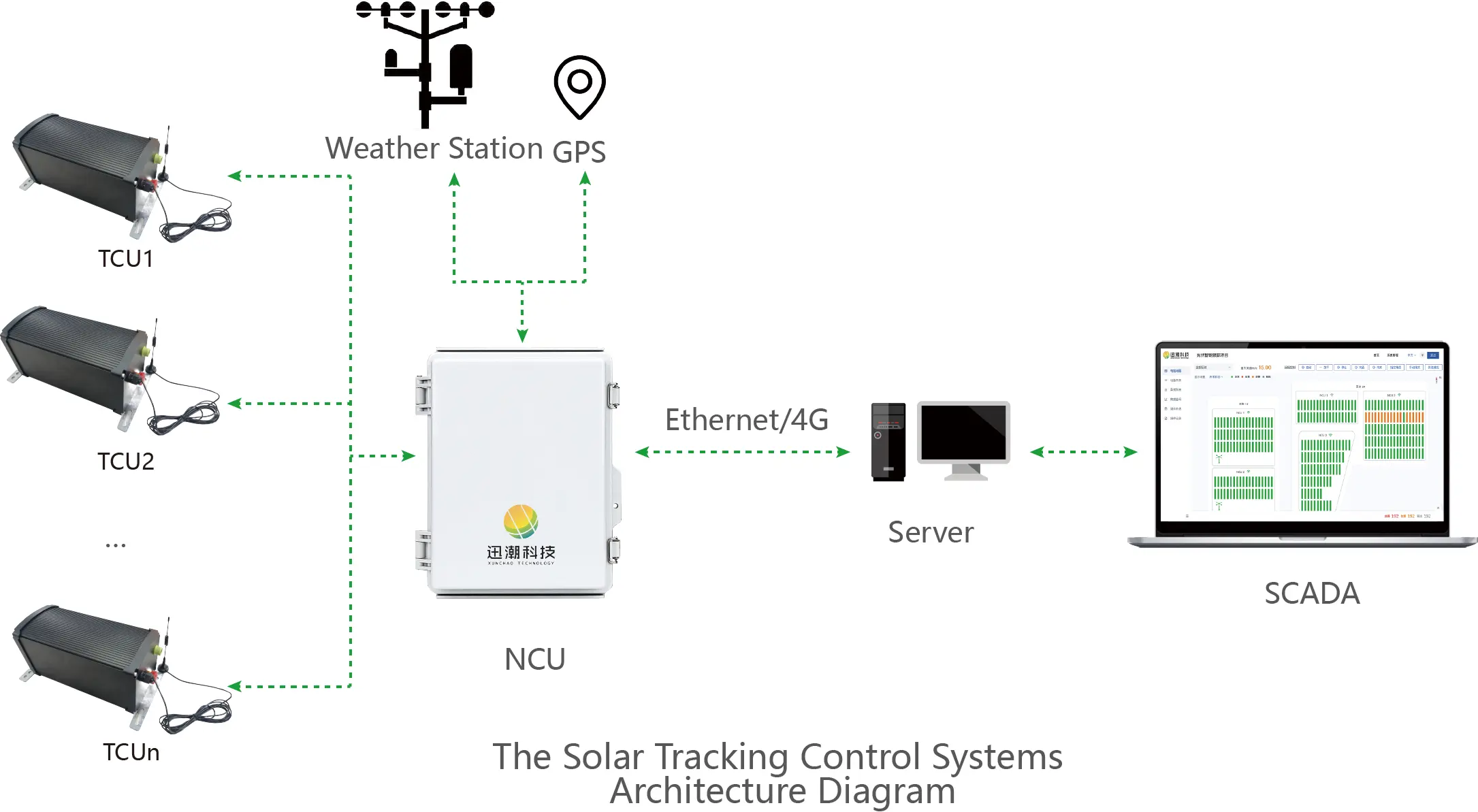

The NCU communicates with the TCU wirelessly to obtain the real-time operating parameters of all TCUs. The TCU can be controlled individually or in groups, and the acquired weather sensor data can be sent to each TCU. At the same time, the NCU can upload TCU operating data, meteorological parameters and other data to the back-end SCADA system through fixed or wireless methods, and accept control instructions from the back-end SCADA system. In the automatic tracking mode, the system automatically issues tracking instructions based on the current position of the sun, controls the operation of the motor actuator, and enables photovoltaic modules to track the sun in real time to increase power generation. At the same time, according to different environments, the system can adjust the tracking angle of the tracking bracket to ensure the stable operation of the system. Support Wi-SUN/4G/RS485/Ethernet and other communication letter mode. System operation is stable and reliable.The background configuration is simple. The intelligent operation and maintenance of the power station can be easily realized.

Frequently Asked Questions of Solar Tracker

How do solar panels track the sun？

According to the local longitude, latitude, and time, the solar tracker controller automatically calculates the movement trajectory of the sun at the current moment and the azimuth and altitude angle of the location, and it also automatically issue tracking commands according to the current position of the sun and controls the motor to ensure that the relationship between the PV panel and the incidence angle of the sun is always perpendicular.

What is solar tracking system？

Our company tracking system is made of three basic units: Tracker Control Unit (TCU), Network Control Unit (NCU) and SurgeTrack SCADA (SCADA).

How to make solar tracker efficiency calculation?

Firstly, the data collected by the equipment is accurate, secondly, the prediction and optimization of the algorithm is accurate, then the control of the solar tracker controller is real-time and accurate, and finally, the action of the motor and the information feedback are accurate. These are the prerequisites and guarantees for efficient operation of the tracking control system.

How to make solar tracker installation?

If you have any questions, please feel free to leave us a message, our sales will contact you the first time. According to your requirements, we will provide you with detailed product information, installation and configuration details, and offer full after-sales service at your convenience.
